650 D.C. Calcium Silicate Pipe Cover and Board

The 650 D.C. calcium silicate pipe cover & board are suitable for thermal insulation of piping and equipment in power station, steel mill and petrochemical industries as well as other various fields. It can also be specified to use in furnace as backing material of refractory bricks.

Properties of calcium silicate pipe and board:

High strength: the strongest one among the inorganic thermal insulation materials with the similar density;
Non-deformation within the temperature range;
Low thermal conductivity;
Long service life;
Asbestos-free.

Technical data of 170 Density calcium silicate pipe and board

Term	Unit	JISA 9510	Mowco
Density	Kg/m³	<=170	<=170
Maximum Service Temperature	^oC	650	650
Thermal Conductivity (100^oC)	W/m.k	<=0.058	<=0.055
Compressive Strength	Mpa	>=0.30	>=0.30
Flexural Strength	Mpa	>=0.20	>=0.20
Linear Shrinkage	%	<=2.0	<=2.0
Chlorine Content			ASTM C795

Technical data of 220 Density calcium silicate pipe and board

Term		Unit	ASTM C533	JISA 9510	Mowco
Density		Kg/m³	<=240	<=220	<=220
Maximum Service Temperature		^oC	650	650	650
Thermal Conductivity (93^oC)		W/m.k	<=0.065	<=0.062	<=0.060
Compressive Strength		Mpa	>=0.688	>=0.45	>=0.688
Flexural Strength		Mpa	>=0.344	>=0.30	>=0.35
Linear Shrinkage		%	<=2.0	<=2.0	<=2.0
Mass Loss By Turning		First 10 Minnutes	<=20%		<=20%
Mass Loss By Turning		Second 10 Minutes	<=40%		<=40%
Surface Burning Chaaract Eristics	Flame Spread Index		0		0
Surface Burning Chaaract Eristics	Smoke Density		0		0
Chlorine Content			ASTM C795		ASTM C795

Calcium silicate products availability

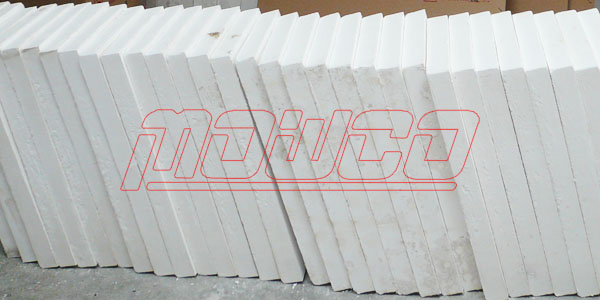

Calcium Silicate Board	Length x Width	610 x 150mm 600 x 150mm	Thickness: 25-100mm
		610 x 300mm 600 x 300mm
		915 x 305mm
		1000 x 500mm
Curved sheet	Inside diameter 196 ~ 3560mm	Length 610/600/915mm	Thickness: 25-100mm

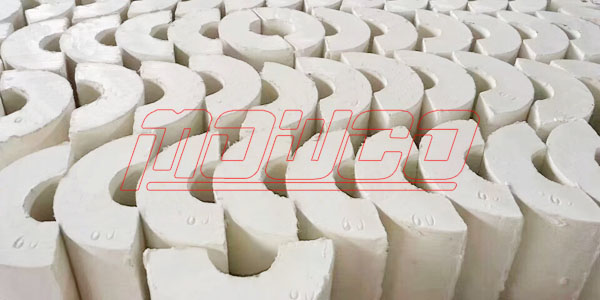

Calcium Silicate Pipe	Inside diameter 16 ~ 171mm	Length 610/600/915mm	Thickness: 25-100mm

Tolerance for different calcium silicate pipe and board

Item	Allowable dimension tolerance (Unit: mm)				Surface crack (Unit: spot)
Item	Length	Width	Inside diameter	Thickness	Broken edge	Broken corner
Calcium Silicate Board	+3 -2	+3 -3		+3 -2	1	1
Curved sheet	+3 -2		+5 -0	+0 -2	1	1
Calcium Silicate Pipe	+3 -2		+3 -0	+0 -2	1	1

650 D.C. Calcium Silicate Pipe Cover and Board

Technical data of 170 Density calcium silicate pipe and board

Technical data of 220 Density calcium silicate pipe and board

Calcium silicate products availability

Tolerance for different calcium silicate pipe and board

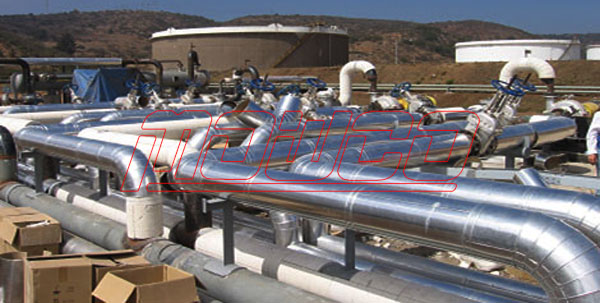

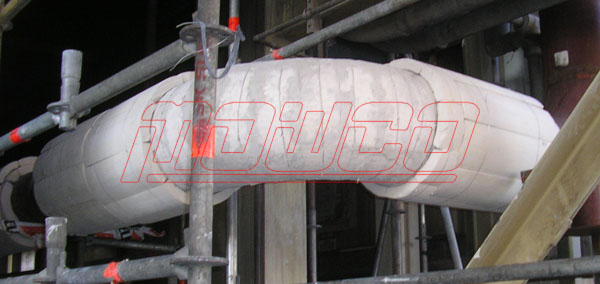

Application
