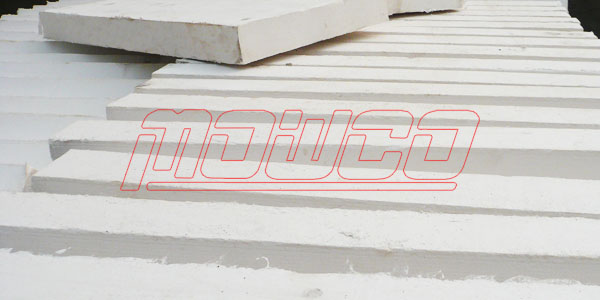

1000 D.C. Calcium Silicate Board
The 1000 D.C. calcium silicate board is suitable for thermal insulation in furnace, cave dwelling of steel mill, petrochemical, ceramics, glass, cement industries and power industries as well as other various ancillary heating equipment.
The main constituents of calcium silicate board is xonotlite and reinforced glass fiber, no asbestos. It is a kind of high efficient energy-saving material with temperature limited 1050 cent-degree. Characterised by low bulk density, high specific strength, superior heat resistance, outstanding thermal insulation, excellent durability, chemical corrosion resistance, easy to be cut by saw and easy installation, calcium silicate can be widely used for the insulation of industrial kiln.
Properties of calcium silicate board:
- High strength: the strongest one among the inorganic thermal insulation materials with the similar density;
- Non-deformation within the temperature range;
- Low thermal conductivity;
- Asbestos-free.
Application of calcium silicate board:
- Cement industry: preheaters and cyclone separators, decomposition kiln, tertiary air duct and cooler;
- Nonferrous metallurygical industry: aluminum power calciner and electrolysis groove;
- Petrochemical industry: Splitting furnace, catalytic cracking furnace, petroleum pipeline, underground heat-flooding;
- Metallurgical industry (steel plant): hot-rolling heat furnace, cool-rolling mill set, RH vacuum degassing furnace, smelters, hot deformation and heat treatment plants;
- Power plant:preheat stove, pipe;
- Glass industry:melting furnace and recuperator, annealing furnace and cooling channels.
Technical data of 135 density board
| Item |
Unit |
Mowco |
GB / 10699 - 1998 |
| Density |
Kg/m3 |
135 |
<=140 |
| Compressive Strength |
Mpa |
0.49 |
>=0.40 |
| Bending Strength |
Mpa |
0.26 |
>=0.20 |
| Thermal Conductivity |
W/m.k |
100oC |
0.0528 |
<=0.058 |
| |
|
|
JISA 9510 - 95 |
| Heat Linear Shrinkage (1000oC x 3hr) |
% |
1.74 |
2 |
Technical data of 170 density board
| Item |
Unit |
Mowco |
GB / 10699 - 1998 |
| Density |
Kg/m3 |
166 |
<=170 |
| Compressive Strength |
Mpa |
0.46 |
>=0.40 |
| Bending Strength |
Mpa |
0.37 |
>=0.20 |
| Thermal Conductivity |
W/m.k |
100oC |
0.0524 |
<=0.058 |
| |
|
|
JISA 9510 - 95 |
| Heat Linear Shrinkage (1000oC x 3hr) |
% |
1.26 |
2 |
Technical data of 220 density board
| Item |
Unit |
Mowco |
ASTM C533 - 95 |
| Density |
Kg/m3 |
220 |
240 |
| Compressive Strength |
Mpa |
0.913 |
0.688 |
| Bending Strength |
Mpa |
0.614 |
0.344 |
| Thermal Conductivity |
W/m.k |
93oC |
0.058 |
0.065 |
| 316oC |
0.074 |
0.095 |
| Heat Linear Shrinkage (1000oC x 3hr) |
% |
1.6 |
2 |
Availability for different calcium silicate board and pipe
| Calcium Silicate Board |
Length x Width |
610 x 150mm
600 x 150mm
610 x 300mm
600 x 300mm
915 x 305mm
1000 x 500mm |
Thickness
25 ~ 100mm |
| Curved sheet |
Inside diameter |
196 ~ 3560mm |
Thickness
25 ~ 100mm |
Length
600mm
610mm
915mm |
| Calcium Silicate Pipe |
Inside diameter |
16 ~ 171mm |
Thickness
25 ~ 100mm |
Length
600mm
610mm
915mm |
Tolerance for different calcium silicate board and pipe
| Item |
Allowable dimension tolerance (Unit:mm) |
| Length |
Width |
Inside diameter |
Thickness |
| Calcium Silicate Board |
+3
-2 |
+3
-2 |
|
+3
-2 |
| Curved sheet |
+3
-2 |
|
+5
-0 |
+0
-2 |
| Calcium Silicate Pipe |
+3
-2 |
|
+3
-0 |
+0
-2 |

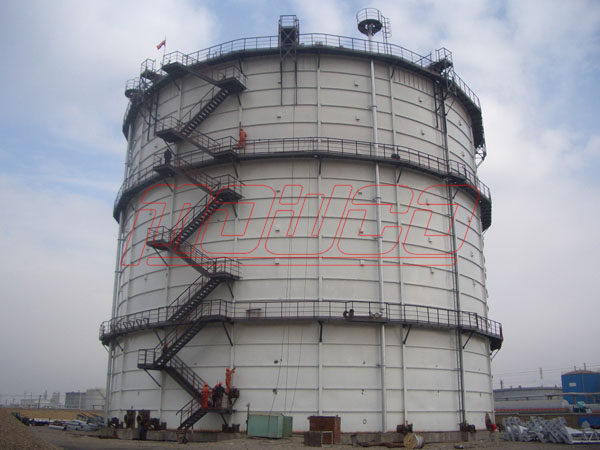

Application
